Category: Radiology
Estimated Date: 1900
Name: X-Ray Tube, Transformer
Manufacturer: unknown

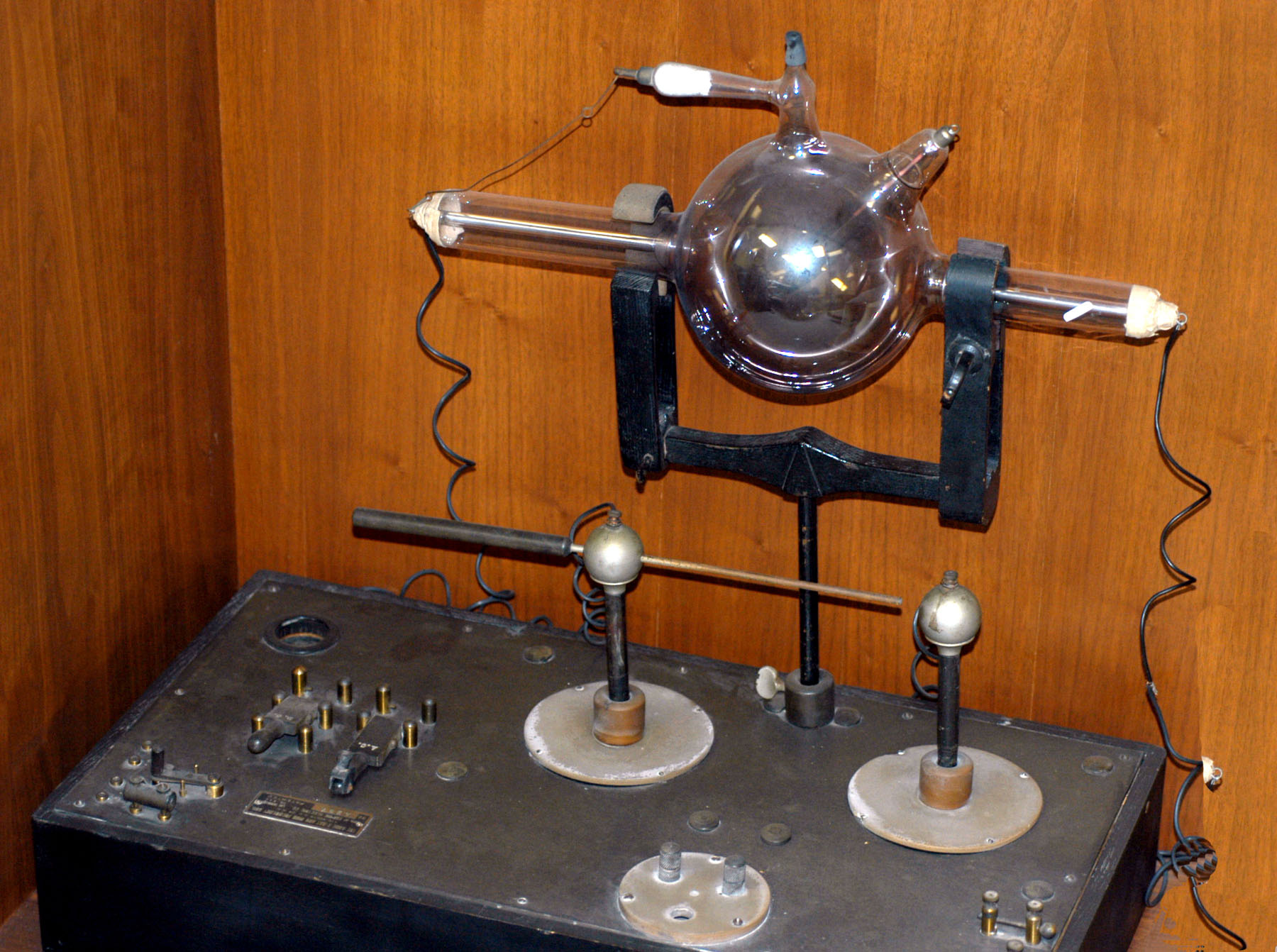

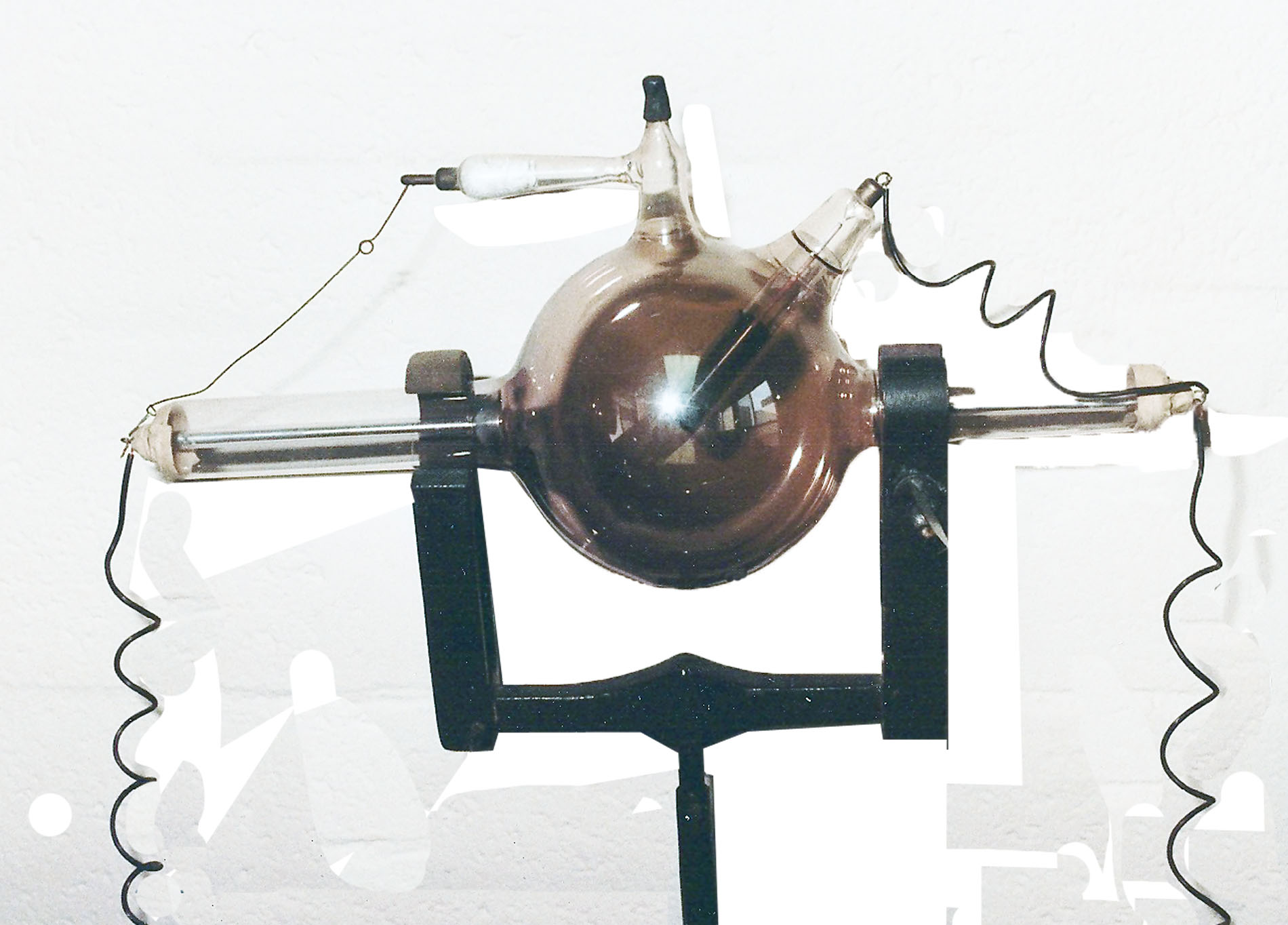

Description: Part of desk top X-Ray apparatus. The desktop portion is 4.5” x 24” x 12”. It has connectors to the tube, a spark gap and several switches. The tube is 18” with a 6 “ bulb and it is symmetrical. There are three connectors and a t-shaped extension from the tube for adjusting the vacuum etc. Portable X-Ray outfits were popular in the early part of the 20th century.Tousey discusses them in some detail in his book from 1910. Reference 187, page 654 . He comments that portable outfits should not contain any piece weighing more than 50 pounds. He suggests that if there is no electricity in the house where it is being used, an electric automobile will generate enough current. The specific tube shown with this outfit is described in the reference below on page 88. It is labeled an American X-Ray tube with asbestos regeneration. They date the tube at around 1900.

Reference 1: 501
